Sportsbook Bar & Grill – AV System Rebuild After Devastating Fire
In early 2024, Sportsbook Bar & Grill Greenwood Village suffered a devastating fire after a break-in, completely destroying the restaurant. Having worked with them on their previous AV system, we were heartbroken to see such a well-loved establishment reduced to rubble.
Despite the immense loss, the ownership team demonstrated incredible leadership while the restaurant was closed for rebuilding. Their dedication to their people and community was inspiring, and we were honored to help them bring Sportsbook back—bigger and better than before.
The rebuild of Sportsbook Bar & Grill Greenwood Village was about more than just technology—it was about helping a beloved business recover and thrive after a devastating loss. Logic Integration was proud to be part of the journey, delivering a cutting-edge AV system that ensures every guest enjoys an unforgettable game‑day experience.
Rebuilding the AV system from the ground up presented several key challenges:
- Total system loss – With the original system destroyed, every component needed to be redesigned, specified, and installed from scratch.
- Optimized audio distribution – The space required a speaker layout that would provide even, high-quality sound throughout the venue without overwhelming conversation areas.
- Scalability and future-proofing – The new system needed to support future expansion, additional displays, and evolving technology.
- User-friendly operation – The bar staff needed an intuitive control system that would allow them to easily manage multiple video sources and audio zones without technical complexity.
- Reliable performance – As a sports bar operating long hours with constant use, the AV system needed to be built for durability and consistent, high-quality performance.
Logic Integration designed and installed a comprehensive AV system tailored to the needs of Sportsbook Bar & Grill. The solution incorporated Planar displays, Origin Acoustics speakers, Aurora video distribution, and Crestron control, ensuring a fully integrated and high-performance system.

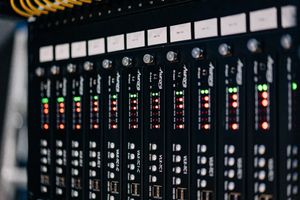

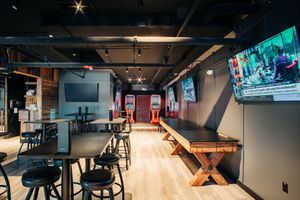

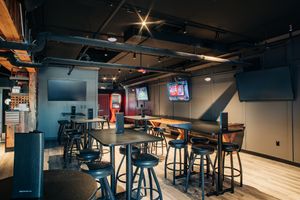

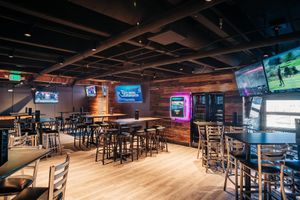

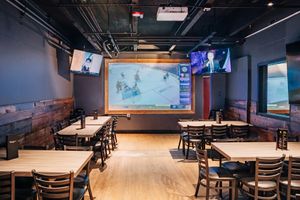

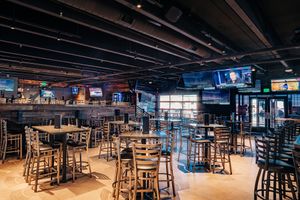

The video system was built around a combination of Planar SLM 55-inch and 65-inch UHD displays, along with 41 existing screens integrated into the new system. Aurora VLX-TC1 AV-over-IP transceivers provided seamless video switching and distribution, allowing staff to easily manage content across multiple screens.
For audio, the venue was outfitted with 24 Origin Acoustics PS80B pendant speakers and three PPSUB8 subwoofers, ensuring even sound distribution and rich bass response. QSC Core 110f DSP was implemented to fine-tune the audio system for optimal performance in different areas of the restaurant.
A Crestron CP4 processor was installed to handle system control, providing a centralized interface for video and audio management. Staff could access controls via an existing Crestron TSW-1070 touchscreen and an app-based interface, allowing for quick adjustments from anywhere in the venue.
To support system reliability, two 42U AV racks were installed to house all equipment in an organized and efficient manner. WattBox IP power conditioners and battery backups were incorporated to ensure uptime and protect equipment from power fluctuations. OvrC remote monitoring was also implemented, allowing for proactive system management and troubleshooting.
- Planar SLM 55” and 65” UHD Displays – High-resolution screens for an immersive sports viewing experience.
- Aurora VLX-TC1 AV-over-IP Transceivers – Seamless video distribution and switching across multiple displays.
- Origin Acoustics PS80B Pendant Speakers – Even audio coverage with high-quality sound performance.
- Origin Acoustics PPSUB8 Subwoofers – Deep, rich bass to enhance the overall atmosphere.
- QSC Core 110f DSP – Advanced digital signal processing for optimized audio quality.
- Crestron CP4 Processor – Centralized control for video and audio management.
- Crestron TSW-1070 Touchscreen & App Control – Intuitive and flexible user interface for staff.

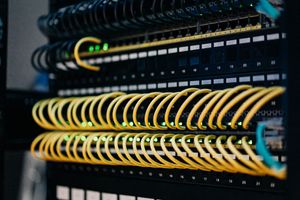

- Netgear M4300 48-Port POE+ Switches – High-bandwidth networking for AV‑over‑IP functionality.
- WattBox IP Power Conditioners & Battery Backups – System protection and reliability.
- OvrC Remote Monitoring – Proactive system management and troubleshooting.
- 42U AV Racks – Organized, efficient equipment housing for long‑term reliability.
The new video system delivered sharp, high-resolution visuals with the flexibility to display multiple sports events simultaneously. The upgraded audio system provided even coverage and excellent clarity, enhancing the atmosphere without overpowering conversations. The Crestron control system allowed staff to easily manage displays and audio zones, reducing operational complexity. The AV infrastructure was built for long-term reliability, ensuring consistent performance for years to come. Sportsbook Bar & Grill reopened stronger than ever, continuing to serve as a premier sports-viewing destination for its loyal customers.
