City of Broomfield

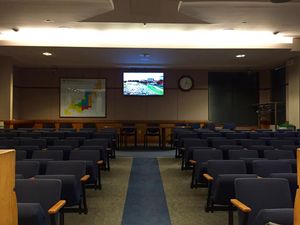

The City and County of Broomfield partnered with Logic Integration to modernize their Council Chambers audiovisual (AV) system. The project aimed to elevate the quality and flexibility of live broadcasts, meeting presentations, and internal workflows. Logic Integration proposed a complete digital overhaul using a value-engineered solution with broadcast-level capabilities, centered around Blackmagic Design technologies.
The existing system was outdated, analog-based, and lacked the resolution, control, and broadcast quality needed to support today’s high standards for video and presentation systems. Key challenges included:
- Replacing standard-definition cameras with high-definition PTZ units
- Enhancing operator control without complicating user interaction for Council members
- Delivering simultaneous content to multiple outputs (live stream, video wall, staff monitors, and public-facing displays)
- Integrating a cohesive control system that was both intuitive for daily use and powerful for live production
- Upgrading infrastructure without significantly disrupting city operations
Logic Integration engineered a hybrid solution focused on scalability, broadcast functionality, and intuitive control. Notable technologies and components included:

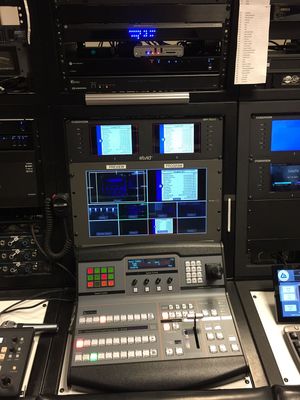

- Blackmagic Design ATEM 1 M/E Production Studio 4K
- for seamless live switching, transitions, and layering
- Blackmagic ATEM 1 M/E Broadcast Panel
- providing tactile control for video production operators
- Five Panasonic AW-HE60SN HD/SDI PTZ cameras
- on shock mounts, with IP control via Panasonic AW-RP50N
- Crestron 8x8 DigitalMedia Switcher (DM-MD8X8)
- for centralized routing of video sources

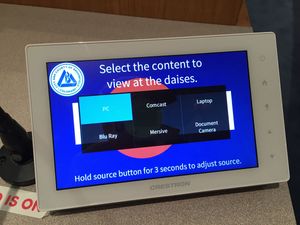

- Crestron CP3 control system
- with multiple touch panels (TSW-1052 and TSW-750) and iPad integration via iPort
- Planar 2x2 Video Wall (LX46HDS)
- for large-format, multi-source viewing
- Mersive Solstice Pod
- for wireless presentation capabilities

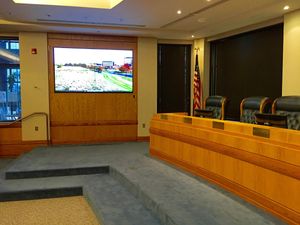

- Custom movable video wall solution
- featuring Draper’s Screen Boom motorized arm for flexible positioning

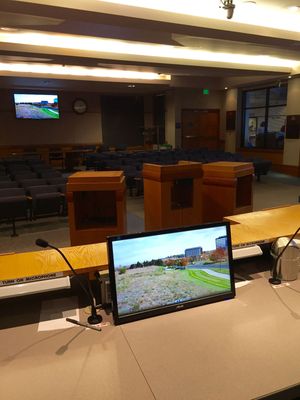

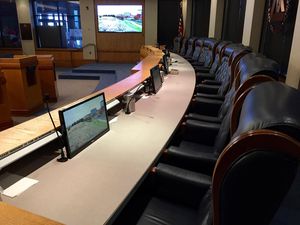

- Vaddio document camera and professional-grade monitors
- for operator preview and content routing
- JVC Professional Blu-ray recording system
- for archiving and playback
The AV upgrade at Broomfield's Council Chambers delivered a robust, broadcast-ready platform that seamlessly blended high-end production capabilities with simplified user operation. The system offered:
- Improved visual fidelity and clarity with 1080p HD across all video sources
- Broadcast-quality switching and layering, enabling professional-looking live streams and recordings
- Streamlined control for both experienced operators and everyday users through Crestron interfaces
- Greater flexibility with wireless collaboration, movable video walls, and dynamic content routing
- Enhanced reliability and future-proofing through digital infrastructure and high-performance components
The City of Broomfield now benefits from an AV system that supports its communication needs today and well into the future. Logic Integration’s combination of engineering expertise, detailed project management, and trusted partnerships with brands like Blackmagic Design, Panasonic, Crestron, and Planar ensured the project’s success from concept to completion.
